PKI Tokens Authentication, Encryption and Digital Signatures

PKI tokens provide secure storage for digital certificates and private keys. They allow public-key cryptography and digital signatures to be leveraged securely, without risk of leaking the private key information.

What is PKI?

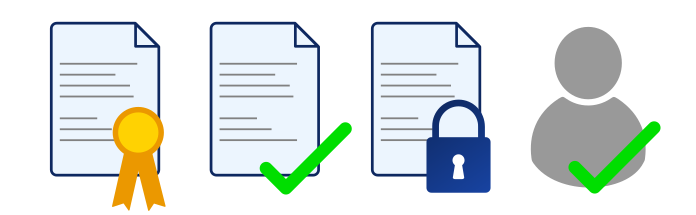

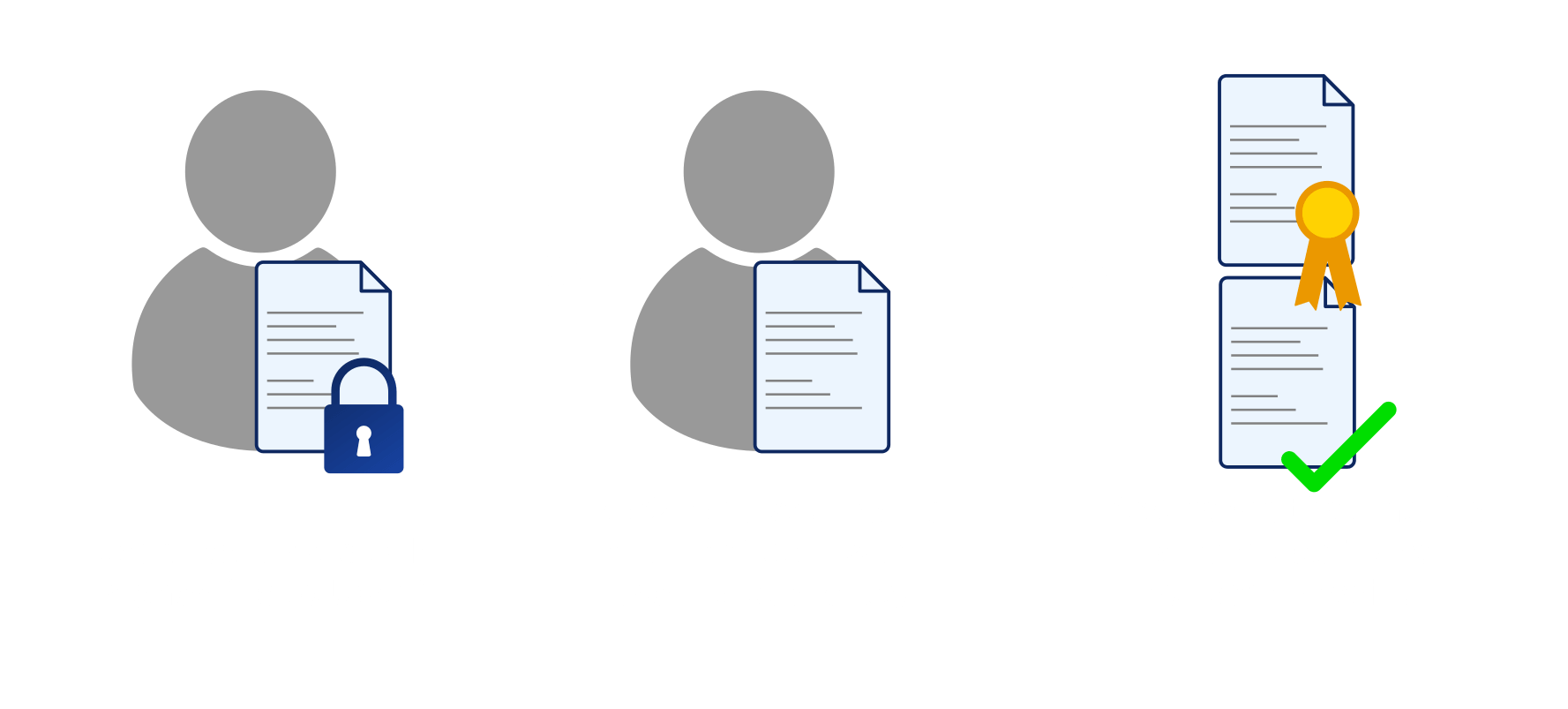

PKI, which stands for Public Key Infrastructure, is a system which creates, stores and distributes digital certificates. Digital-certificates are used to secure the transfer of information, assert identity information and verify the authenticity of messages through public key cryptography and digital signatures.

In a PKI, digital certificates are issued by a Certificate Authority (CA) and bind public keys with identities (eg, users).

PKI security can be deployed in web applications, online banking, BYOD, e-ID, e-Healthcare and more.

Hardware PKI Tokens

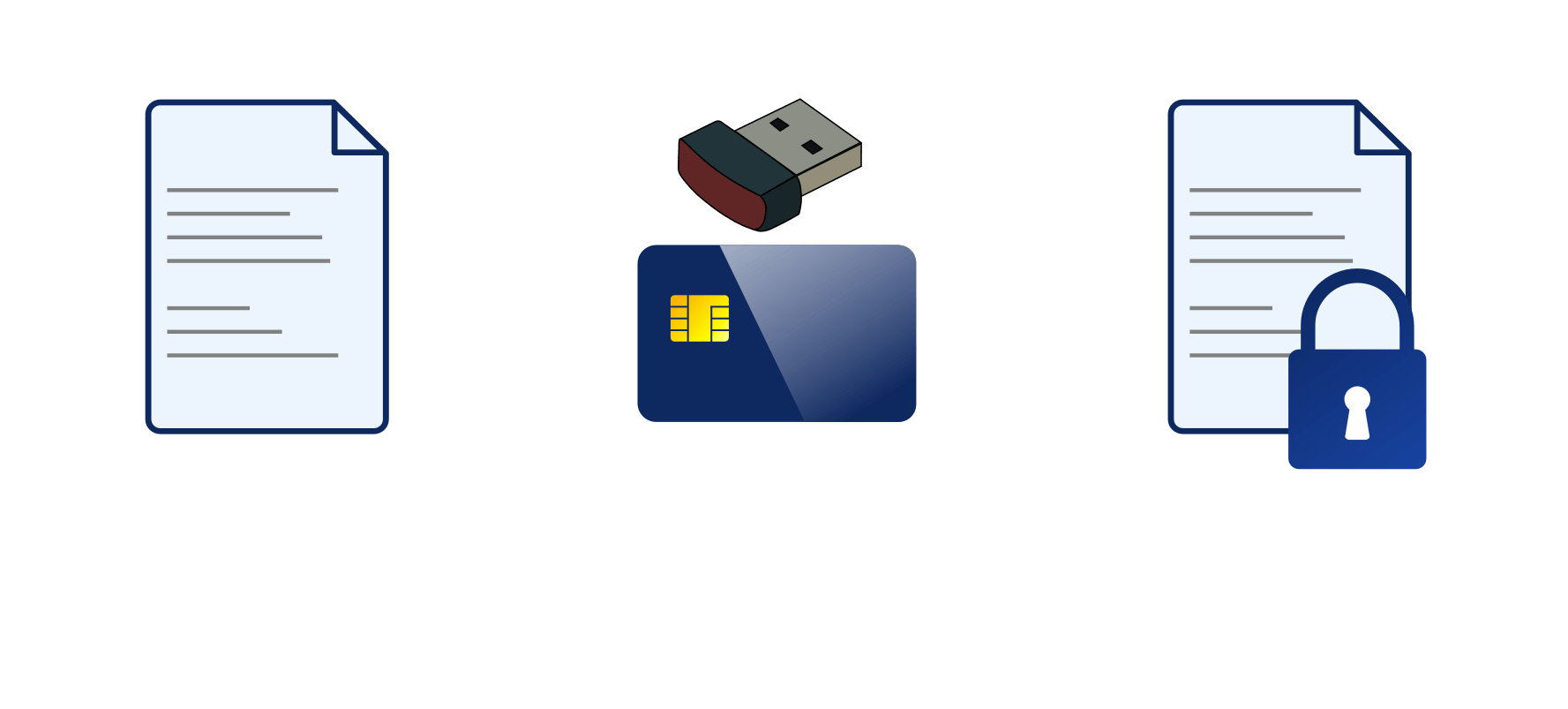

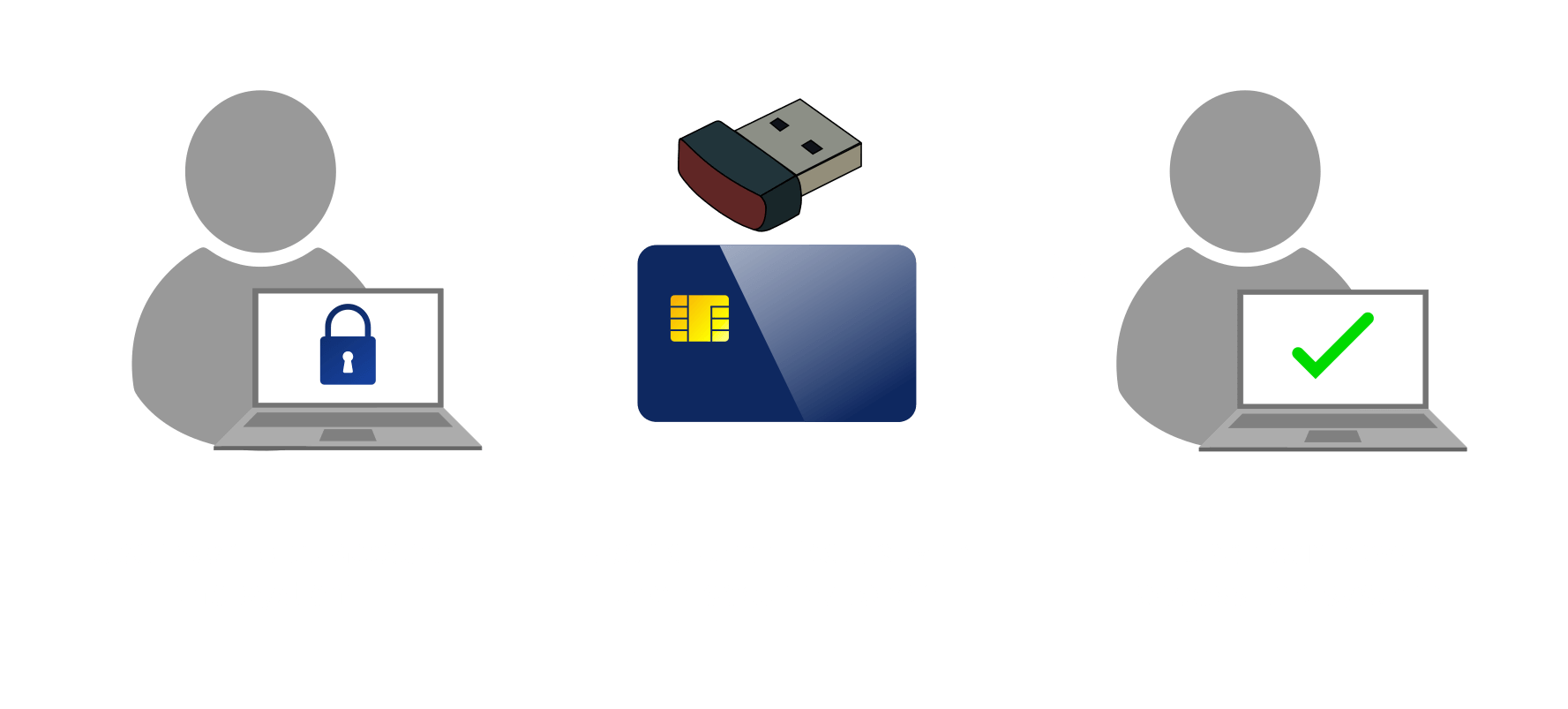

PKI tokens are hardware devices that store digital certificates and private keys securely. When you need to encrypt, decrypt or sign something, the token does this internally in a secure chip meaning the keys are never at risk of being stolen.

We supply the following PKI tokens:

ePass2003 USB PKI Token

PKI Smart Card
FIPS 140-2 Level 3 certified USB PKI dongle. The Feitian ePass2003 supports onboard key generation, encryption and digital signatures. NFC PKI Smart Card with onboard key generation, encryption, decryption and digital signing
FIPS 140-2 Level 3 certified USB PKI dongle PKI encryption and digital signature smart card supported by USB card readers. PKI encryption and digital signature smart card for use with Bluetooth smart card readers. Contactless (NFC) PKI encryption and digital signature smart card.

Description

The Feitian ePass2003 is a FIPS 140-2 Level 3 certified token providing secure storage of personal identity information, digital certificates and private keys for authentication, encryption and digital signatures. This industry-standard USB PKI token is highly regarded internationally.

Description

Secure storage of personal identity information, digital certificates and private keys in a ID-1 sized card. Supports on-board encryption/decryption and digital signatures. NFC-enabled for contactless applications. Can be used with any of our smart card readers.

Features

  • USB connectivity
  • Onboard key generation
  • Onboard digital signing and verification
  • Onboard data encryption and decryption
  • Windows Logon support
  • PKCS#15
  • X.509 v3 Certificate Storage
  • OpenSC compatible

Features

  • Contactless NFC operation (ISO/IEC 14443)
  • Onboard key generation
  • Onboard digital signing and verification
  • Onboard data encryption and decryption
  • Windows Logon support
  • PKCS#15
  • X.509 v3 Certificate Storage
  • OpenSC compatible

Supported APIs & Protocols

  • Microsoft CAPI, CNG
  • Generic Identity Device Specification (GIDS)
  • PKCS#11 v2.40
  • Microsoft Smart Card Minidriver
  • PC/SC, CCID
  • SSL v3
  • IPSec/IKE

Supported APIs & Protocols

  • Microsoft CAPI, CNG
  • Generic Identity Device Specification (GIDS)
  • PKCS#11 v2.40
  • Microsoft Smart Card Minidriver
  • PC/SC, CCID
  • SSL v3
  • IPSec/IKE

Algorithms

  • RSA 1024/2048 bit (RSAES-OEAP, RSASSA-PSS)
  • ECDSA 192/256 bit (Optional)
  • DES/3DES
  • AES 128/192/256 bit
  • SHA-1, SHA-2, MD5

Algorithms

  • RSA 1024/2048 bit
  • ECDSA 192/256 bit (Optional)
  • DES/3DES
  • AES 128/192/256 bit
  • SHA-1, SHA-2, MD5

Specification

  • ISO-7816 compliant
  • Memory: 64 KB
  • 10 year+ data retention
  • Operating temperature: 0 °C ~ 50 °C
  • Storage temperature: -20 °C ~ 60 °C
  • Humidity: 0 ~ 100 % RH

Specification

  • Java Card 2.2.2
  • Global Platform 2.1.1
  • ISO-7816 compliant
  • ISO/IEC 14443 compliant
  • Chip: Infineon SLE77CLFX2400PM
  • Operating voltage: 3 v/5 v
  • Memory: 68 KB
  • 500,000+ memory rewrites
  • 10 year+ data retention

OS Compatibility

  • Windows PC/Laptop
  • macOS
  • Linux

OS Compatibility

The PKI Smart Card supports the following operating systems and requires a compatible reader

  • Windows PC/Laptop
  • macOS
  • Linux
  • iPhone
  • iPad
  • Windows tablet
  • Android (contactless (NFC), or via compatible reader)

Certifications

  • CC EAL 5+ (chip level)
  • CE, FCC, RoHS compliant
  • FIPS 140-2 Level 3 Certified
  • ICP-Brasil Certified

Certifications

  • CC EAL 5+ (chip level)
  • CE, FCC, RoHS compliant
Buy ePass2003 Tokens Online Buy PKI Smart Cards Online

Download PKI Token Datasheet

PKI SDK

Our PKI Software Development Kit includes everything you need to integrate PKI into your software. The SDK includes libraries, detailed sample code and documentation for C, C++ and Java.

Contact us to discuss your PKI requirements
